MicroDot phat LED Matrix Size

Support
1

Ahoy. I’ve just ordered the MicroDot phat red LED version and I am wondering about the size of the LED matrix and spacing on the PCB. Are they compatible with standard 14-Pin IC sockets (amputation of one of its legs aside) so I can swap out the LED matrix colours and configurations if I’m feeling in a green mood instead of a red.

Cheers,

Matt

2

yes, I’ve done this myself:

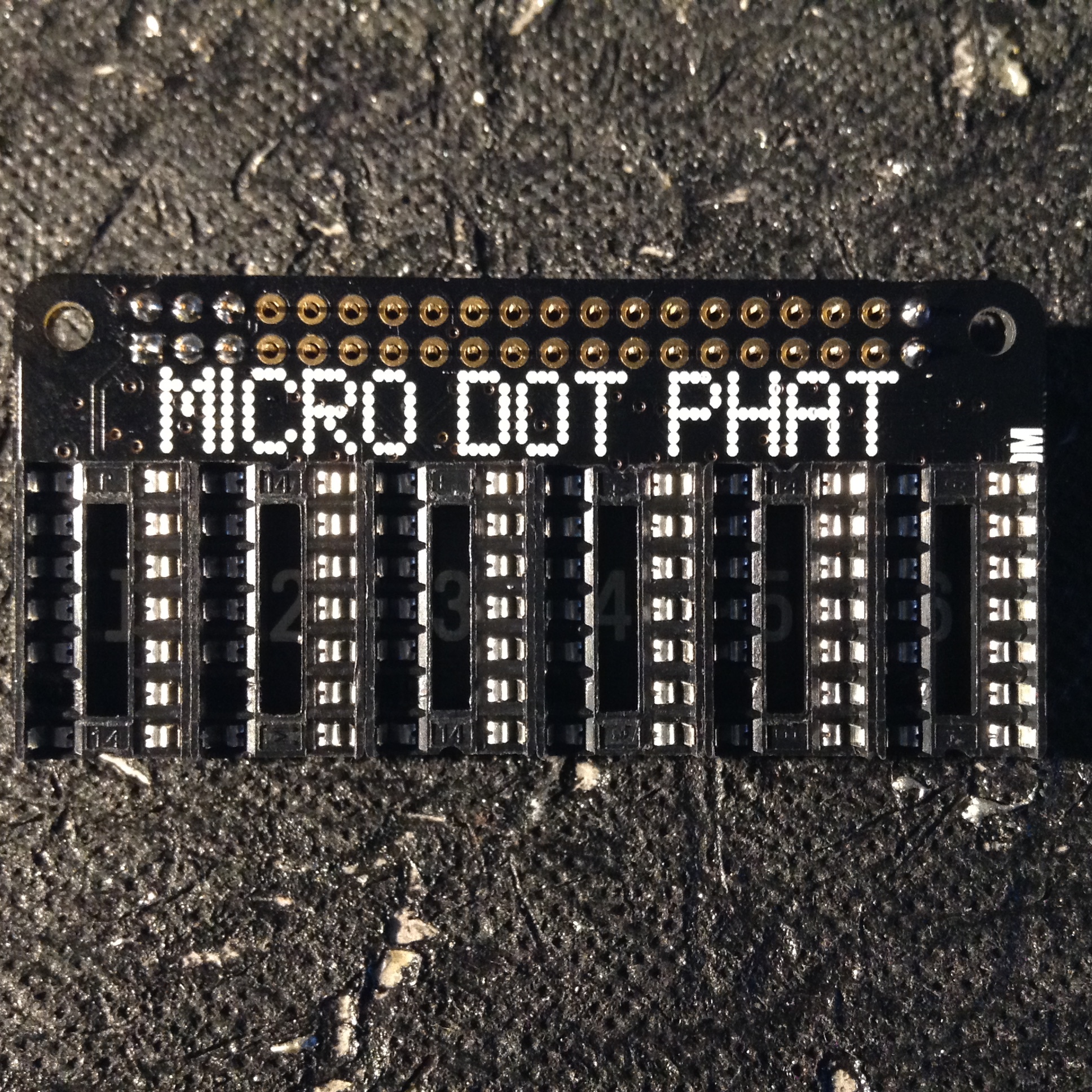

image.jpeg1936×1936 1.5 MB

Note that it’s a tight fit, so start with matrices 3-4 and work your way outwards!

1 Like
3

Thanks. And thanks for the tip.
