Plasma button kit on a Picade with PI5 still doesn't work

Hello dear bucaneers, i’m coming back for new adventures. :)

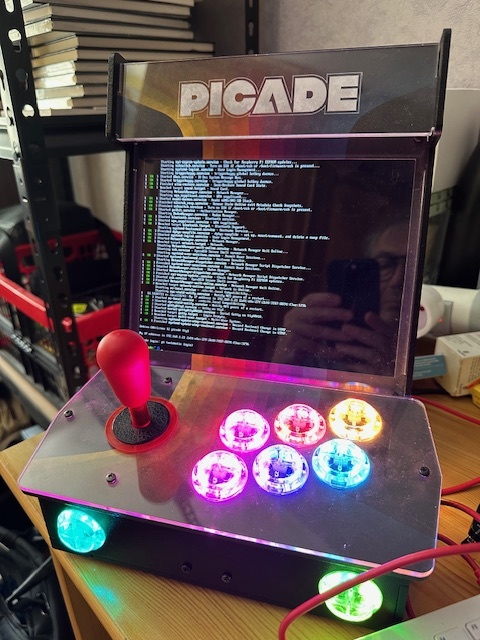

I have a Picade 10" from which i have changed the “old” PI4 by a brand new PI5 with a 512K NVME installed on it. It works just great! It’s a home made solution mainly based on the SonicProd solution and with ArcadeFlow as the Front-End running on Attract Mode +. And it’s just a killing front-End to execute MAME games with a PI5.

i also have the Plasma buttons Kit installed on my Picade. They worked just fine with the PI4 but not with the PI5! I abandonned few months ago to try to make them work. It seems that there was a Python GPIO library required for the Plasma buttons which didn’t exist for the PI5 but I’m not an expert in those deepest technical things. I thought that after several months this problem would be solved now. But it I still didn’t find the way to make them work. I see that the buttons are still available in the Piromoni shop with no restriction concerning the PI version. So my question is: how do you make those damned plasma buttons working on a Picade with a PI5?

Did you do the?
curl https://get.pimoroni.com/plasma | bash
As per,
pimoroni/plasma-python: Plasma LED driver, FX Sequencer and plugins

Thanks for your help @alphanumeric , that’s the first thing I did and that’s the result:

pi@picade:~ $ curl https://get.pimoroni.com/plasma | bash
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 34969  100 34969    0     0   134k      0 --:--:-- --:--:-- --:--:--  134k

This script will install everything needed to use
Plasma Lights

Always be careful when running scripts and commands copied
from the internet. Ensure they are from a trusted source.

This script should -- only be run on a Raspberry Pi with RPi OS --
other systems and SBCs are not supported and may explode!

If you want to see what this script does before running it,
you should run: 'curl https://get.pimoroni.com/plasma'


Do you wish to continue? [y/N] y

Checking environment...
Updating apt indexes...
...............

Checking hardware requirements...

Checking for packages required for GPIO control...
raspi-gpio is already installed

Checking for dependencies...
lsb-release is already installed

Github repo already present. Updating...
...Already up to date.

Finalising Install...

sudo: ./install.sh: command not found
Support for your operating system is experimental. Please visit
forums.pimoroni.com if you experience issues with this product.

pi@picade:~ $ ...
pi@picade:~ $

Then i also tried the folliwing proposal from the plasma-python github:

pi@picade:~ $ git clone https://github.com/pimoroni/plasma
cd plasma/daemon
sudo ./install
Cloning into 'plasma'...
remote: Enumerating objects: 603, done.
remote: Counting objects: 100% (603/603), done.
remote: Compressing objects: 100% (261/261), done.
remote: Total 603 (delta 304), reused 550 (delta 259), pack-reused 0 (from 0)
Receiving objects: 100% (603/603), 115.54 KiB | 1.07 MiB/s, done.
Resolving deltas: 100% (304/304), done.
-bash: cd: plasma/daemon: No such file or directory
sudo: ./install: command not found
pi@picade:~ $

I installed a Raspberry Pi OS Lite.
And here is the last info:

pi@picade:~ $ cat /etc/os-release
PRETTY_NAME="Debian GNU/Linux 12 (bookworm)"
NAME="Debian GNU/Linux"
VERSION_ID="12"
VERSION="12 (bookworm)"
VERSION_CODENAME=bookworm
ID=debian
HOME_URL="https://www.debian.org/"
SUPPORT_URL="https://www.debian.org/support"
BUG_REPORT_URL="https://bugs.debian.org/"
pi@picade:~ $

Check your folder structure. You may have to cd pimoroni, cd plasma etc, to get to the install file.

What happens when you try to run an example?

Bookworm uses a python virtual environment, is that what you are doing?

Thanks for the feedback @alphanumeric .

The curl https://get.pimoroni.com/plasma | bash command generates the following folder structure Pimorono/plasma/plasma which contains:

pi@picade:~ $ ls -l Pimoroni/plasma/plasma/*
-rw-r--r-- 1 pi pi 2868 Jun 22 15:34 Pimoroni/plasma/plasma/README.md

Pimoroni/plasma/plasma/boards:
total 24
-rw-r--r-- 1 pi pi 1660 Jun 22 15:34 common.cmake
-rw-r--r-- 1 pi pi  123 Jun 22 15:34 manifest-common.py
drwxr-xr-x 2 pi pi 4096 Jun 22 15:34 plasma_2040
drwxr-xr-x 2 pi pi 4096 Jun 22 15:34 plasma_2350_w
drwxr-xr-x 2 pi pi 4096 Jun 22 15:34 plasma_stick_2040_w
-rw-r--r-- 1 pi pi 1505 Jun 22 15:34 usermod-common.cmake

Pimoroni/plasma/plasma/ci:
total 12
-rw-r--r-- 1 pi pi 4517 Jun 22 15:34 micropython.sh
-rw-r--r-- 1 pi pi 1128 Jun 22 15:34 python.sh

Pimoroni/plasma/plasma/docs:
total 8
-rw-r--r-- 1 pi pi 6606 Jun 22 15:34 plasma.md

Pimoroni/plasma/plasma/examples:
total 24
-rw-r--r-- 1 pi pi 2662 Jun 22 15:34 hue_twinkles_encoder.py
-rw-r--r-- 1 pi pi 2795 Jun 22 15:34 main.py
drwxr-xr-x 2 pi pi 4096 Jun 22 15:34 plasma2040
drwxr-xr-x 2 pi pi 4096 Jun 22 15:34 plasma_stick
-rw-r--r-- 1 pi pi   34 Jun 22 15:34 secrets.py
-rw-r--r-- 1 pi pi 2008 Jun 22 15:34 sparkles.py

Pimoroni/plasma/plasma/modules:
total 8
drwxr-xr-x 2 pi pi 4096 Jun 22 15:34 common
drwxr-xr-x 2 pi pi 4096 Jun 22 15:34 wireless
pi@picade:~ $

There is no install.sh anywhere in it:

pi@picade:~ $ find Pimoroni/plasma/plasma/ -name install.sh
pi@picade:~ $

I can’t execute anything the main command is not found.

pi@picade:~ $ plasmactl --list
-bash: plasmactl: command not found

For additional info i also tried the manual install

pi@picade:~ $ sudo pip3 install plasmalights
sudo: pip3: command not found

So i did the following:

pi@picade:~ $ sudo apt install python3-pip

Then

sudo rm /usr/lib/python3.11/EXTERNALLY-MANAGED

Then

sudo pip3 install plasmalights

Same result… nothing works.

And trying to run from the examples:

pi@picade:~/plasma/examples $ python ./main.py

I had first to install the python modules urequests and ezwifi but still no success:

pi@picade:~/plasma/examples $ python ./main.py
Traceback (most recent call last):
  File "/usr/local/lib/python3.11/dist-packages/comtypes/__init__.py", line 5, in <module>
    from _ctypes import COMError  # noqa
    ^^^^^^^^^^^^^^^^^^^^^^^^^^^^
ImportError: cannot import name 'COMError' from '_ctypes' (/usr/lib/python3.11/lib-dynload/_ctypes.cpython-311-aarch64-linux-gnu.so)

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
  File "/home/pi/plasma/examples/./main.py", line 4, in <module>
    from ezwifi import connect
  File "/usr/local/lib/python3.11/dist-packages/ezwifi.py", line 3, in <module>
    from ezwlan.ezwlan import *
  File "/usr/local/lib/python3.11/dist-packages/ezwlan/ezwlan.py", line 1, in <module>
    from ezwlan.wlanapi import *
  File "/usr/local/lib/python3.11/dist-packages/ezwlan/wlanapi.py", line 3, in <module>
    from win32wifi.Win32NativeWifiApi import *
  File "/usr/local/lib/python3.11/dist-packages/win32wifi/Win32NativeWifiApi.py", line 26, in <module>
    from comtypes import GUID
  File "/usr/local/lib/python3.11/dist-packages/comtypes/__init__.py", line 15, in <module>
    raise ImportError(msg) from e
ImportError: COM technology not available (maybe it's the wrong platform).
Note that COM is only supported on Windows.
For more details, please check: https://learn.microsoft.com/en-us/windows/win32/com
pi@picade:~/plasma/examples $

I had to run sudo ./install**.sh**
I downloaded the zip, then extracted it to my home folder.
Then did a
cd plasma-python-master
sudo ./install.sh
It appeared to install OK, I don’t have anything plasma connected though. This was on a Pi 5 running 64 bit desktop, Bookworm.

You can contact Pimoroni Tech support directly, via e-mail.
Contact Us for Raspberry Pi Technical Support - Pimoroni

Your solution worked just fine, many thanks @alphanumeric ! :)

git clone -b master https://github.com/pimoroni/plasma-python.git
cd plasma-python/
sudo ./install.sh

2 Likes

Nice, I was hoping one of us would stumble on the answer. =)
